Product Details
Place of Origin: sichuan
Brand Name: Xidao
Certification: SAE J1772
Model Number: Ac-BG3-22Kw-MG
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiate
Packaging Details: Wooden case packaging
Delivery Time: 15-30 work days
Payment Terms: L/C, T/T
Supply Ability: 5000 per month
Product Name: |
22KW Wallbox EV Charger |
Input Voltage: |
380vac ± 10% |
Frequency: |
50Hz/60HZ |
Phase: |
3 Phase |
Charging Capacity: |
Up To 22KW |
Operating Temperature: |
'-30 ℃ To 55 ℃ |
Standby Power: |
≤3W |
Product Name: |
22KW Wallbox EV Charger |
Input Voltage: |
380vac ± 10% |
Frequency: |
50Hz/60HZ |
Phase: |
3 Phase |
Charging Capacity: |
Up To 22KW |
Operating Temperature: |
'-30 ℃ To 55 ℃ |
Standby Power: |
≤3W |

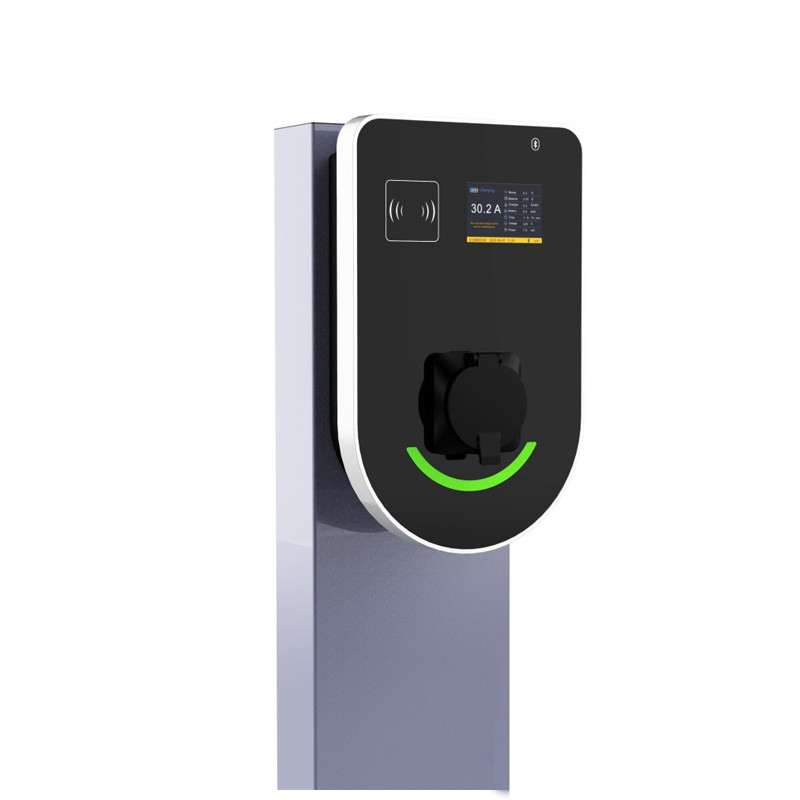

SAE J1772 11KW 32A Wallbox EV Charger Station Intelligent Advanced Cloud Fast Charge
Wallbox EV Charger Product Introduction
Has insulation monitoring function, automatically turns off the output to ensure safe charging when insulation level is low. The AC commercial charging station integrates functions such as control, management, query and display, and has the advantages of reliability, flexibility, convenience,and speed, It is widely used in public parking lots, residential parking lots and other small and medium-sized electric vehicle charging places.
Product Parameters
| Product name | Wallbox EV Charger | ||
| Product type | Home version | ||
| Input Voltage | 220vac ± 20% | ||
| Frequency | 50Hz/60Hz | ||
| Output voltage range | 230V±10% | ||
| Rated output current | 32A | ||
| Charge gun length | 5M | ||
| Average trouble-free time | 8760 hours | ||
| Working Temperature | `-30℃~+55℃ | ||
| Humidity of working environment | 5%~95% | ||
| Altitude | ≤2000M | ||
| IP level | IP55 | ||
| Atmospheric pressure intensity | 50kPa-110kPa | ||
| Energy Meter | MID certified | ||
| OCPP | OCPP1.6 Json | ||
| Communication | WIFI/Ethemet/4G(Optional) | ||
| User interface | LED/LCD(3.5* )/ RFID (mifare iso& IEC 14443A) | ||
| Charging interface | Type 2 socket | ||
| Special Protection | Over current protection, Residual current protection, Ground protection,sur protection, Over/Under voltage protection, Over/Your ¡ency protection Over/Under temperature protection | ||
| Product Dimensions | 320*230*100(L*W*H)mm | ||
Function
• Smart: The mobile phone APP provides functions such as search, navigation, query, and appointment of charging.
• Seflient: Support services such as swiping cards and mobile apps
• System: Advanced cloud fast charging platform system, providing big data monitoring
